Jaguar

Ražotāja mājas lapa: www.muovihaka.com Jaguar

Brošūras: Jaguar_UK.pdf Jaguar_Installation.pdf Jaguar_Maintenance.pdf

Jaguar - entrance mat

Jaguar is heavy duty primary entrance mat for all high and extreme traffic conditions including airports, subway stations, shopping centres, public buildings etc.

Jaguar is very durable interlocking modular mat for both internal and external applications. It has exceptional performance for heavy foot and trolley traffic.

Jaguar has open construction and slip resistant surface. A functional Jaguar entrance mat stops dirt, sand and debris in the entrance area. Jaguar’s surface scrapes away undershoe dirt while letting debris fall through its open grid.

Excellent slip resistance and maximum drainage

Jaguar has slip resistant surface pattern and it offers also an exceptional drainage. Open grid construction allows water to pass through the mat, providing safe and dry surface and reducing slip hazards.

Interlocking tiles

Interlocking modular tiles allow you to create an entrance mat of any length and width. Tiles are very easy to cut to size and shape. Jaguar tiles can be installed in minutes, without the use of special tools.

Easy maintenance

Jaguar entrance mat is inexpensive to clean by vacuum cleaning or hosing down. Lightweight Jaguar matting is easy to roll up for maintenance. Dirt that falls through the mat can be simply vacuum cleaned from the floor underneath.

Specifications

Material: PVC/NBR, UV-shielded. Resists most chemicals and oils. 100 % recyclable.
Tile size: 400 x 100 mm
Packaging: 25 tiles / box (approx. 1 m²)
Height: 12 mm, 16 mm, 20 mm and 25 mm
Weight: 4.9 kg/m² 7.1 kg/m² 9.0 kg/m² 11.3 kg/m²
Temperature resistance: -35ºC - +70ºC
Standard colours: Graphite, blue, dark grey, terracotta, light grey, green and black
Fire resistance: B2 (DIN 4102-1)

Standard colours

Jaguar accessories

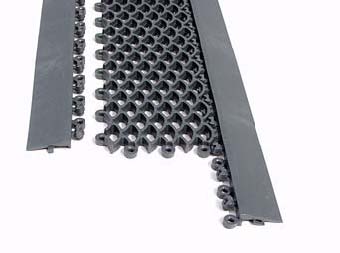

	Jaguar edging 12 mm Bevelled surface of Jaguar 12 mm edging reduces tripping hazards. Low edging allows foot and wheel traffic to traverse easily. Material: UV-resistant vinyl/NBR Size: 4 cm x 40 cm Height: 12 mm Weight: 100 g / pc Colour: grey
	Plastic edging 16 mm Jaguar plastic edging is specially designed for surface mounted applications on finished floor surfaces and for indoor and outdoor conditions. Material: UV-resistant PP/rubber Lenght: 300 cm Height: 16 mm Weight: 290 g / m Colour: grey
	Jaguar aluminium edging 16/20 mm The bevelled surface of the edging minimizes the possibility of tripping and allows use of wheeled carts. It withstands heavy loads and is suitable for heavy wheeled traffic. Material: anodised aluminium. Lenght: 300 cm Height: 18 mm Weight: 460 g / m
	Jaguar logo inserts The bevelled surface of the edging minimizes the possibility of tripping and allows use of wheeled carts. It withstands heavy loads and is suitable for heavy wheeled traffic. Material: ABS Height: 12, 16 and 20 mm Colours: black, red, blue, green and yellow
	Jaguar anchors Jaguar installation anchors are used to secure sections of mats to floor. If there is a risk that entrance mats might move due to heavy foot or trolley traffic, Jaguar installation anchors prevent mats from moving and sliding around. Material: nylon Height: 12, 16 and 20 mm Colours: black and grey Ø 15 mm
